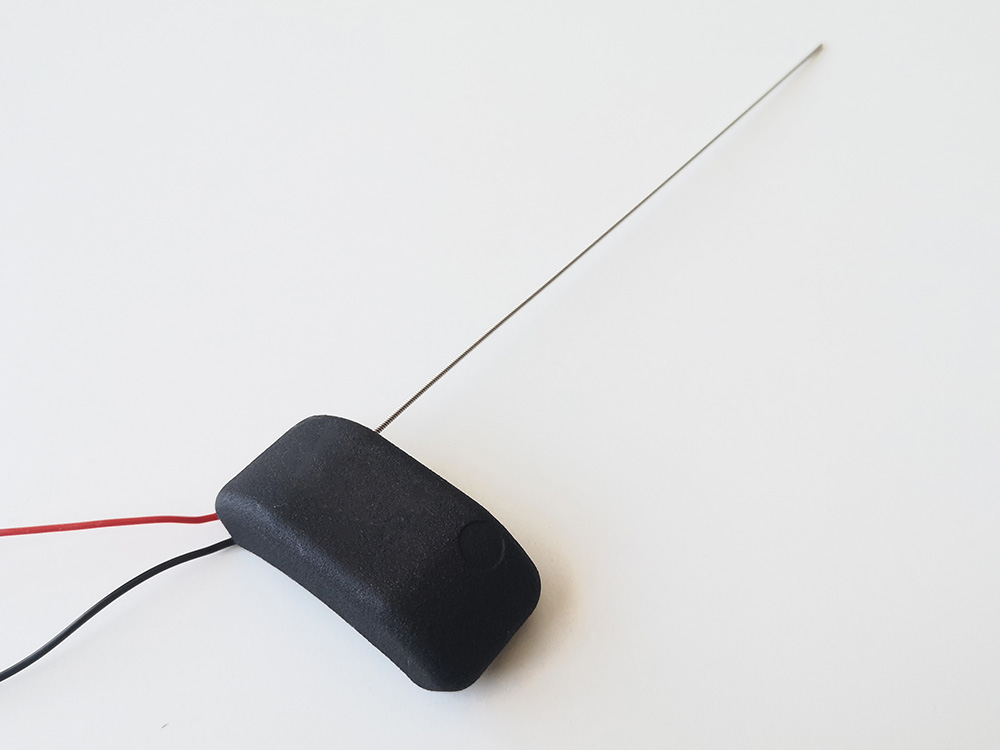

CollarEdge Pico¶
current availability: catalog
Ultra-small collar tracker for hares, cats, foxes and raccoons; RhinoEdge Cube electronics with a separate battery unit on 16mm or 22mm belting.
Typical use: hare, cat, raccoon, fox.
Variants: Pico 16mm-1A (A-cell); Pico 22mm-1C (C-cell).
Specifications¶
| Positioning | u-blox GNSS, LR11xx GNSS, Wi-Fi scan, BLE scan |
| Connectivity | LoRaWAN, BLE |
| Sensors | accelerometer, temperature, reed switch |
| Power | primary / 1x Saft LM17500 (A-cell) or C-cell / 3.0 Ah |
| Dimensions | 45 x 22 x 15 mm |
| Weight | 5 g |
| Enclosure | PA12, polyurethane resin; battery unit 56 x 22 x 30 mm |
Firmware¶
| Firmware board | rhinoedge_nrf52840 |
| Tracker type | collaredgepico_tracker (value 12) |
| Hardware revisions supported | 1.4.0-1.6.0 |
| Latest firmware | v8.0.1 (2026-09-24) |
Runs the shared OpenCollar Edge firmware; see supported hardware for revision groups and the releases page for downloads.
Based on RhinoEdge Cube.
Repositories¶
- Documentation, BOM and assembly: CollarEdge Pico: documentation, BOM, assembly
- Electronics: RhinoEdge Cube electronics (rhinoedge_nrf52840) (latest: V1.6.0 (2025-04-08))
- Mechanics: CollarEdge Pico mechanics (latest: v1.1.0 (2024-07-19))
Tools¶
- Configure and update: Smart Parks Connect ShortRange (BLE web app), Smart Parks Connect App (Android)
- Decode data: Raw logs decoder
