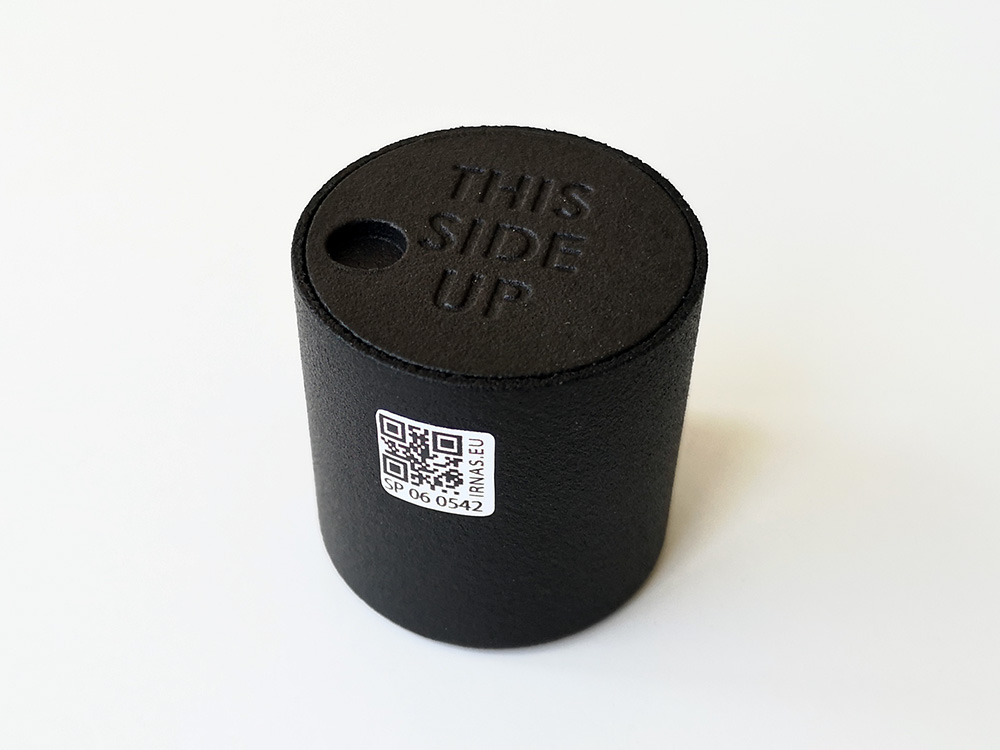

RhinoEdge Puck 35¶
current availability: catalog
Round horn implant with three times the battery of the Cube; sold as "Puck 34".
Typical use: rhino horn implant.
Specifications¶
| Positioning | u-blox GNSS, LR11xx GNSS, Wi-Fi scan, BLE scan |
| Connectivity | LoRaWAN, BLE |
| Sensors | accelerometer, temperature, reed switch |
| Power | primary / 3x Saft LS14250 / 3.6 Ah |
| Dimensions | 35 x 35 x 35 mm |
| Weight | 43 g |
| Enclosure | PA12, diameter 35 mm, height 35 mm |
Firmware¶
| Firmware board | rhinopuck35_nrf52840 |
| Tracker type | rhinopuck_tracker (value 6) |
| Hardware revisions supported | 1.2.0 |
| Latest firmware | v8.0.1 (2026-09-24) |
Runs the shared OpenCollar Edge firmware; see supported hardware for revision groups and the releases page for downloads.
Repositories¶
- Documentation, BOM and assembly: RhinoEdge Puck 35: documentation, BOM, assembly
- Electronics: RhinoEdge Puck 35 electronics (rhinopuck35_nrf52840) (latest: V1.2.0 (2023-06-01))
- Mechanics: RhinoEdge Puck 35 mechanics (latest: v1.4.0 (2024-07-19))
Tools¶
- Configure and update: Smart Parks Connect ShortRange (BLE web app), Smart Parks Connect App (Android)
- Decode data: Raw logs decoder
External links¶
Note
Repositories and firmware say Puck35; wiki and catalog say Puck 34. Same device.
