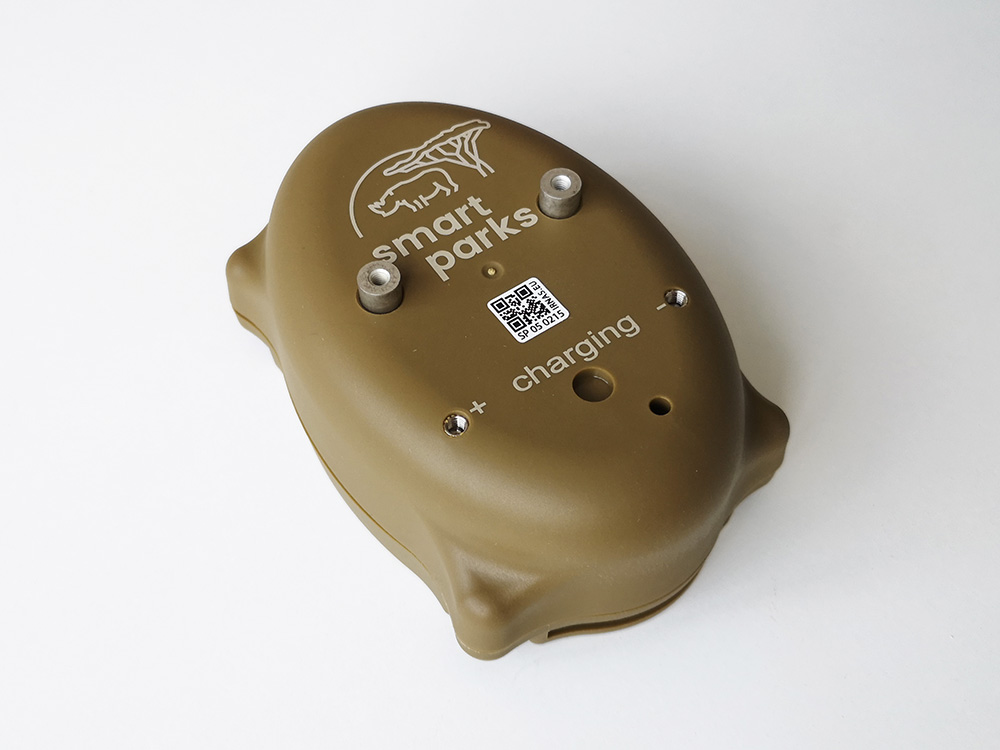

FenceEdge¶
current availability: catalog
RangerEdge with a high-voltage probe board that measures electric fence pulses; reports on FPort 12.
Typical use: electric fence monitoring.
Specifications¶
| Positioning | u-blox GNSS, LR11xx GNSS |
| Connectivity | LoRaWAN, BLE |
| Sensors | fence voltage and pulse count, accelerometer, temperature |
| Power | rechargeable / 2x 18650 Li-ion / 5.7 Ah; charging: DC 5-30 V, solar |
| Dimensions | 106 x 72 x 41 mm |
| Weight | 245 g |
| Enclosure | PA6 (RangerEdge housing for fence monitor) |
Firmware¶
| Firmware board | rangeredge_nrf52840 |
| Tracker type | fenceedge_tracker (value 10) |
| Hardware revisions supported | 1.4.0-1.5.0, 1.6.0, 1.7.0, 1.8.0-1.13.0 |
| Latest firmware | v8.0.1 (2026-09-24) |
Runs the shared OpenCollar Edge firmware; see supported hardware for revision groups and the releases page for downloads.
Based on RangerEdge.
Repositories¶
- Documentation, BOM and assembly: FenceEdge (Fence Monitor): documentation, BOM, assembly
- Electronics: RangerEdge electronics (rangeredge_nrf52840) (latest: V1.13.1 (2025-12-05))
- Electronics: Fence monitor electronics (high-voltage probe) (latest: V2.1.0 (2023-06-01))
- Mechanics: RangerEdge mechanics (latest: v1.0.0 (2024-07-19))
Tools¶
- Configure and update: Smart Parks Connect ShortRange (BLE web app), Smart Parks Connect App (Android)
- Decode data: Raw logs decoder
External links¶
Note
Repositories use the name "Fence Monitor"; the product is sold as FenceEdge.
