WisentEdge¶
current availability: catalog

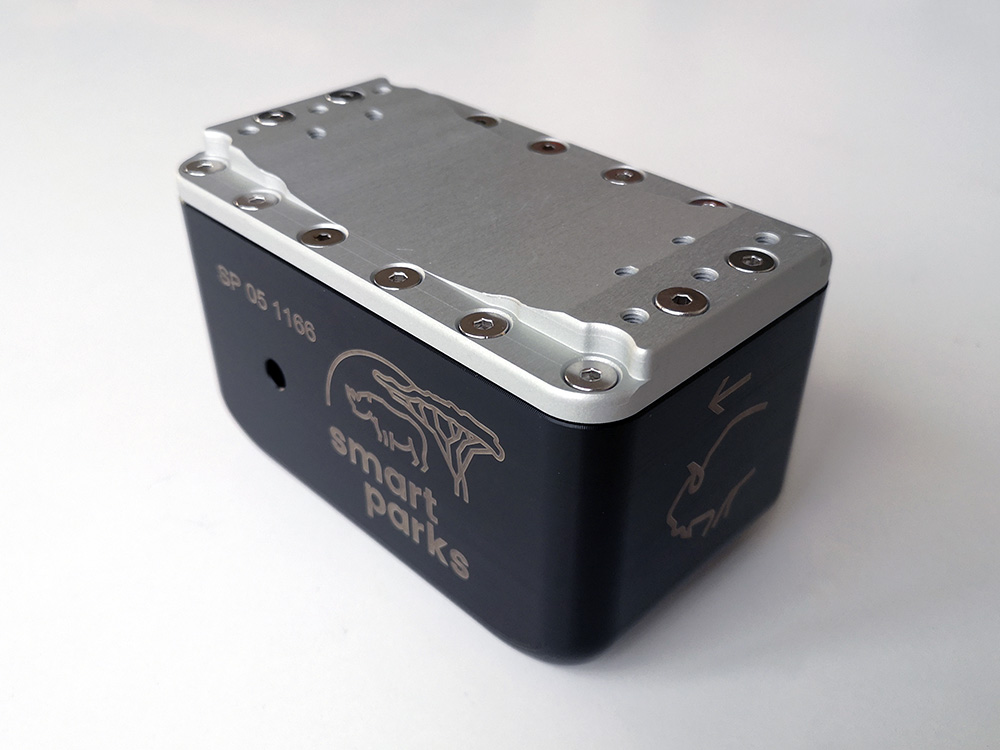

Large collar tracker for bison, buffalo and other large grazers; RangerEdge electronics with primary batteries in a POM and aluminium housing.
Typical use: large grazer tracking.
Specifications¶
| Positioning | u-blox GNSS, LR11xx GNSS, Wi-Fi scan, BLE scan |
| Connectivity | LoRaWAN, BLE |
| Sensors | accelerometer, temperature, microphone |
| Power | primary / 8x Saft LS17500 / 28.8 Ah |
| Dimensions | 118 x 70 x 74 mm |
| Weight | 765 g |
| Enclosure | POM with aluminium lid |
Firmware¶
| Firmware board | rangeredge_nrf52840 |
| Tracker type | wisentedge_tracker (value 3) |
| Hardware revisions supported | 1.4.0-1.5.0, 1.6.0, 1.7.0, 1.8.0-1.13.0 |
| Latest firmware | v8.0.1 (2026-09-24) |
Runs the shared OpenCollar Edge firmware; see supported hardware for revision groups and the releases page for downloads.
Based on RangerEdge.
Repositories¶
- Documentation, BOM and assembly: WisentEdge: documentation, BOM, assembly
- Electronics: RangerEdge electronics (rangeredge_nrf52840) (latest: V1.13.1 (2025-12-05))
- Mechanics: WisentEdge mechanics (latest: v1.1.0 (2026-03-20))
Tools¶
- Configure and update: Smart Parks Connect ShortRange (BLE web app), Smart Parks Connect App (Android)
- Decode data: Raw logs decoder
