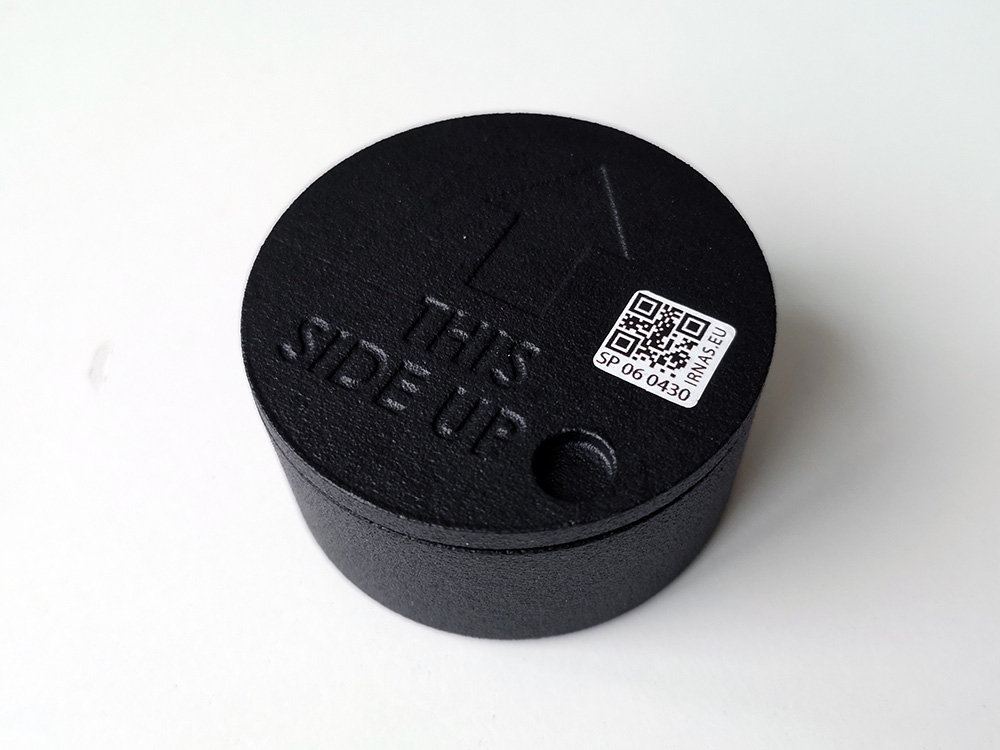

RhinoEdge Puck 50¶
current availability: catalog
Flat round horn implant with the largest battery of the RhinoEdge range.
Typical use: rhino horn implant, HorseEdge mane attachment.
Specifications¶
| Positioning | u-blox GNSS, LR11xx GNSS, Wi-Fi scan, BLE scan |
| Connectivity | LoRaWAN, BLE |
| Sensors | accelerometer, temperature, reed switch |
| Power | primary / 2x Saft LS17330 / 4.2 Ah |
| Dimensions | 49 x 49 x 25 mm |
| Weight | 54 g |
| Enclosure | PA12, diameter 49 mm, height 25 mm |
Firmware¶
| Firmware board | rhinopuck_nrf52840 |
| Tracker type | rhinopuck_tracker (value 6) |
| Hardware revisions supported | 1.3.0 |
| Latest firmware | v8.0.1 (2026-09-24) |
Runs the shared OpenCollar Edge firmware; see supported hardware for revision groups and the releases page for downloads.
Repositories¶
- Documentation, BOM and assembly: RhinoEdge Puck 50: documentation, BOM, assembly
- Electronics: RhinoEdge Puck 50 electronics (rhinopuck_nrf52840) (latest: V1.3.0 (2024-07-18))
- Mechanics: RhinoEdge Puck 50 mechanics (latest: v1.4.0 (2024-07-19))
Tools¶
- Configure and update: Smart Parks Connect ShortRange (BLE web app), Smart Parks Connect App (Android)
- Decode data: Raw logs decoder
External links¶
Note
The firmware board name is rhinopuck_nrf52840 (no size suffix).
